Components Guide


Stateless Components

bot-app

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: Telegram bot with integrated AG-UI Gateway

Technology Stack: - Python (Telegram Bot API) - AG-UI Gateway (SSE API, forms, tools) - Redis client - Elasticsearch client - HTTP clients (FlowAPI, EngineAPI, warehouse-api)

Key Features: - Telegram message handling and routing - Onboarding flows - Knowledge base search (Elasticsearch RAG) - BPMN form rendering (from Camunda engine) - Inline keyboards, reply buttons, suggestions - Wallet integration (Solana) - Quest progress tracking

Connections: - Redis — User state and session management - FlowAPI — Authentication and app configuration - EngineAPI — BPMN workflow orchestration - Elasticsearch — Knowledge base RAG queries - warehouse-api — Real-time event notifications (WebSocket)

Configuration:

env:
  - TELEGRAM_BOT_TOKEN
  - REDIS_URL
  - FLOWAPI_URL
  - ENGINEAPI_URL
  - ELASTICSEARCH_URL
  - WAREHOUSE_API_URL
  - CAMUNDA_ENABLED  # true/false

Scaling: Horizontally scalable via HPA (Horizontal Pod Autoscaler)

webchatbot-app

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: Intercom-style AI chat widget for web

Technology Stack: - Next.js (React) - CopilotKit (AG-UI Protocol) - AG-UI Gateway client (SSE API) - Redis client

Key Features: - Embeddable chat interface (AG-UI compatible) - Real-time responses via AG-UI Gateway - Forms and tool execution - Shared context with Telegram bot

Connections: - AG-UI Gateway (within bot-app) — Unified backend - Redis — Session management

Configuration:

env:
  - AG_UI_GATEWAY_URL
  - REDIS_URL

Scaling: Horizontally scalable via HPA

engine-api

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: BPMN workflow engine (Camunda 7)

Technology Stack: - Java (Camunda 7) - PostgreSQL client (via PgBouncer) - ClickHouse client - RabbitMQ client

Key Features: - Executes BPMN workflows - Visual workflows (BPMN diagrams or text/YAML) - Forms engine (generated or Camunda forms) - Task lists (user, LLM, automated actions) - External tasks (dispatched via RabbitMQ) - Event-driven triggers

Data Storage: - PostgreSQL (via PgBouncer) — Runtime state and process definitions - ClickHouse — Historical events and analytics

API Endpoints: - POST /process-definition/{id}/start — Start process instance - POST /task/{id}/complete — Complete user task - GET /task — Query task list - GET /process-definition — Get process definitions - POST /deployment/create — Deploy workflow

Configuration:

env:
  - POSTGRES_URL  # via PgBouncer
  - CLICKHOUSE_URL
  - RABBITMQ_URL

Scaling: Horizontally scalable via HPA

flowapi-api

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: Authentication, app configuration, and analytics API

Technology Stack: - Node.js / Python - PostgreSQL client (via PgBouncer) - Redis client - JWT library

Key Features: - Auth layer (JWT-based) - Application configurations - Analytics API - User management

Data Storage: - PostgreSQL (via PgBouncer) — Users, apps, configurations - Redis — Cache and session data

API Endpoints: - POST /auth/login — User authentication - GET /apps/{id}/config — Get app configuration - GET /analytics/engagement — Engagement metrics - GET /users/{id} — User profile

Configuration:

env:
  - POSTGRES_URL  # via PgBouncer
  - REDIS_URL
  - JWT_SECRET

Scaling: Horizontally scalable via HPA

warehouse-api

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: Event warehouse and real-time notifications

Technology Stack: - Node.js / Python - WebSocket server - ClickHouse client

Features: - WebSocket interface for real-time events - Pushes updates to clients from engine events - Historical event storage (ClickHouse) - Analytics queries (event aggregation, dashboards)

WebSocket Events: - task.created — New task available - task.completed — Task completed - process.started — Process instance started - process.completed — Process instance completed

Configuration:

env:
  - CLICKHOUSE_URL
  - ENGINE_API_URL

Scaling: Horizontally scalable via HPA

Workers

Type: Kubernetes Deployment (stateless, horizontally scalable)

Purpose: Async workload processing

Technology Stack: - Python / Node.js - RabbitMQ client - Various tool integrations (LLM, image processing, etc.)

Features: - External task workers (RabbitMQ consumers) - Off-chain computation - LLM tasks - Long-running async actions - Workflow integrations

Worker Types: - LLM Workers — Process LLM requests - Image Workers — Image processing, OCR, generation - Whisper Workers — Voice transcription - On-chain Workers — Solana blockchain lookups - Custom Workers — Project-specific integrations

Configuration:

env:
  - RABBITMQ_URL
  - WORKER_TYPE  # llm, image, whisper, onchain, custom
  - TOOL_CONFIGS

Scaling: Horizontally scalable via HPA

Stateful Components

PostgreSQL

Type: Kubernetes StatefulSet

Purpose: Primary database for runtime state and configurations

Used By: - engine-api → BPMN runtime state and process definitions - flowapi-api → Users, apps, auth, configurations

Access: Exclusively via PgBouncer for connection pooling

Scaling: - Vertical scaling (CPU, memory) - HA setup (primary + replicas)

Backup: pgBackRest

Configuration:

resources:
  requests:
    cpu: 2
    memory: 4Gi
  limits:
    cpu: 4
    memory: 8Gi

ClickHouse

Type: Kubernetes StatefulSet

Purpose: Event bus and analytics storage

Stores: - Engine events (from Camunda) - FlowAPI analytics - Engagement metrics - Quest/event logs

Scaling: Shards + replicas

Backup: ClickHouse backups

Configuration:

replicas: 3
shards: 2

Redis

Type: Kubernetes StatefulSet

Purpose: Cache and state machine

Used By: - bot-app — User state and session management - flowapi-api — Cache for app configs and user data - webchatbot-app — Session management

Scaling: - Redis Sentinel (HA) - Redis Cluster (horizontal scaling)

Backup: Optional snapshots (ephemeral data)

Configuration:

mode: sentinel  # or cluster
replicas: 3

RabbitMQ

Type: Kubernetes StatefulSet

Purpose: Message queue for async processing

Handles: - External tasks (from Camunda engine) - LLM jobs - Long-running async actions - Workflow integrations

Scaling: Quorum queues

Backup: Queue definitions backup

Configuration:

queue_type: quorum
replicas: 3

Elasticsearch

Type: Kubernetes StatefulSet

Purpose: Knowledge base search (Dynamic RAG)

Used By: - bot-app — Knowledge base search for Telegram bot - AG-UI Gateway (within bot-app) — Knowledge base search for webchatbot

Scaling: Multi-node cluster

Backup: ES snapshots

Configuration:

replicas: 3
storage: 100Gi

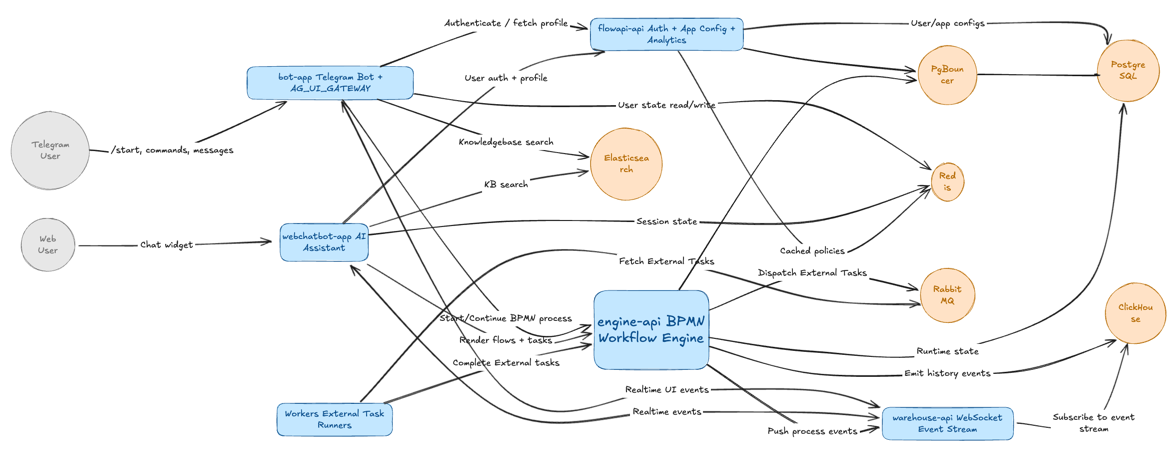

Component Interactions

Request Flow Example

  1. User sends message to Telegram bot

  2. bot-app receives via Telegram Bot API

  3. bot-app checks Redis for user state

  4. Retrieves session and context

  5. bot-app authenticates via FlowAPI

  6. JWT token validation

  7. bot-app queries Elasticsearch for RAG

  8. Knowledge base search

  9. bot-app starts workflow via EngineAPI

  10. BPMN process instance

  11. EngineAPI writes to PostgreSQL

  12. Runtime state stored

  13. EngineAPI emits events to ClickHouse

  14. Analytics events logged

  15. EngineAPI dispatches external task to RabbitMQ

  16. Async processing

  17. Worker consumes task from RabbitMQ

  18. Processes async action

  19. warehouse-api pushes WebSocket event

    • Real-time notification to bot/webchatbot

Configuration Management

Environment Variables

Each component uses environment variables for configuration:

  • Database URLs — PostgreSQL, ClickHouse, Redis, Elasticsearch
  • Service URLs — FlowAPI, EngineAPI, warehouse-api
  • Secrets — JWT secrets, API keys, tokens
  • Feature Flags — CAMUNDA_ENABLED, RAG_ENABLED, etc.

Secrets Management

  • Vault — Enterprise secret management
  • Kubernetes Secrets — Standard K8s secret storage
  • Launcher Wizard — Generates and injects secrets

Monitoring & Observability

Health Checks

  • Liveness probes — Component health
  • Readiness probes — Service availability
  • Startup probes — Initialization status

Metrics

  • Prometheus — Metrics collection
  • Grafana — Dashboards and visualization

Logging

  • Centralized logging — All components log to centralized system
  • Structured logs — JSON format for parsing
